Altera MAX V CPLD Development System - MegaProLogic

Designed, Manufactured and Distributed in the USA. The EPT USB-CPLD development system provides a flexible learning platform by combining a powerful Complex Programmable Logic Device with High Speed USB. It is designed to provide an innovative method of developing and debugging programmable logic code. It provides a serial data transfer mechanism between any microcontroller (or any digital device) and a host PC. The EPT USB-CPLD development system provides a convenient, user-friendly work flow by connecting seamlessly with Altera’s Quartus Prime Lite software. The user will develop the code in the Quartus environment on a Windows Personal Computer. The programmable logic code is then loaded into the CPLD using only the Quartus Programmer software and a standard USB-C cable. The programmer hardware is built in to the EPT-5M570-AP. The ActiveHost API provides a highly configurable communications interface between CPLD and host PC. It connects transparently to the Active Transfer Library running inthe CPLD code.

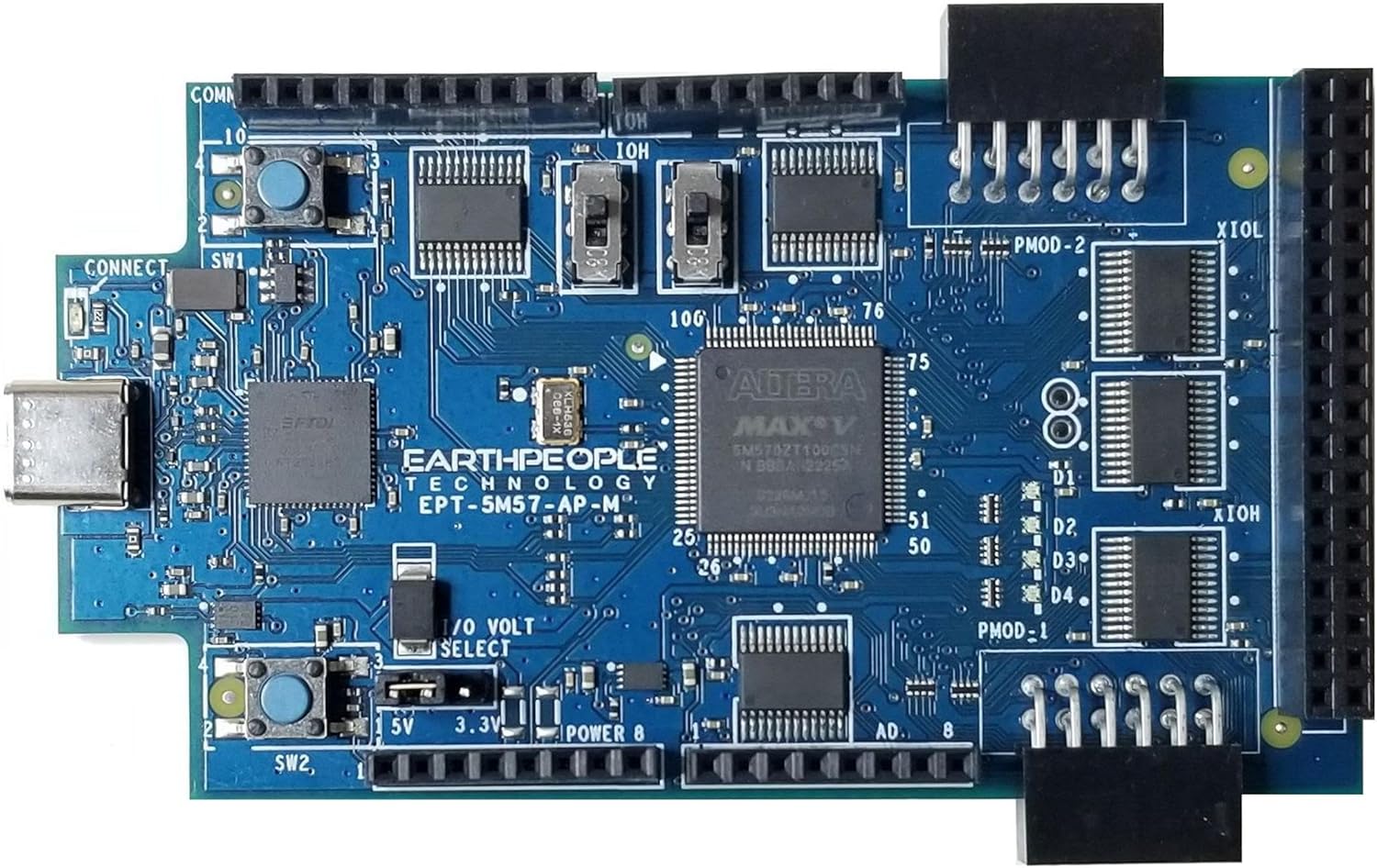

• Altera 5M570T100C5 CPLD chip with 440 MacroCells. The MegaProLogic is a complete CPLD Development Kit. All source files are provided along with a detailed user manual and datasheet to allow the user to create unique projects.
• Inputs/Outputs: 32 -- Selectable between 3.3Volts and 5 Volts. I/O's are protected with 74LVCH4245 8-Bit Bus transceivers. USB Interface: Eight bit data transfers. User code will transparently connect with the ActiveHost API running on the Windows PC. All software is Open Source
• Board Footprint Compatible with the Arduino Mega. Stackable headers connect the MegaProLogic directly to the Mega and Shields. Includes two PMOD connectors to connect directly with PMOD accessories.
• JTAG Programmer Built In: The CPLD is programmed on board. A single USB-C Cable is all that is needed. The MegaProLogic is 100% compatible with Quartus Prime Lite software. The software is a free download from Altera.
• Complete Development Kit with tutorials and source code. Please visit the MegaProLogic product page under the earthpeopletechnology website to access all schematics, user manual, data sheets and project files.
